Applications
It is suitable for the protection of pipes, hoses and cable harnesses used for the mass transportation sector, where non flammable properties are required.
Features

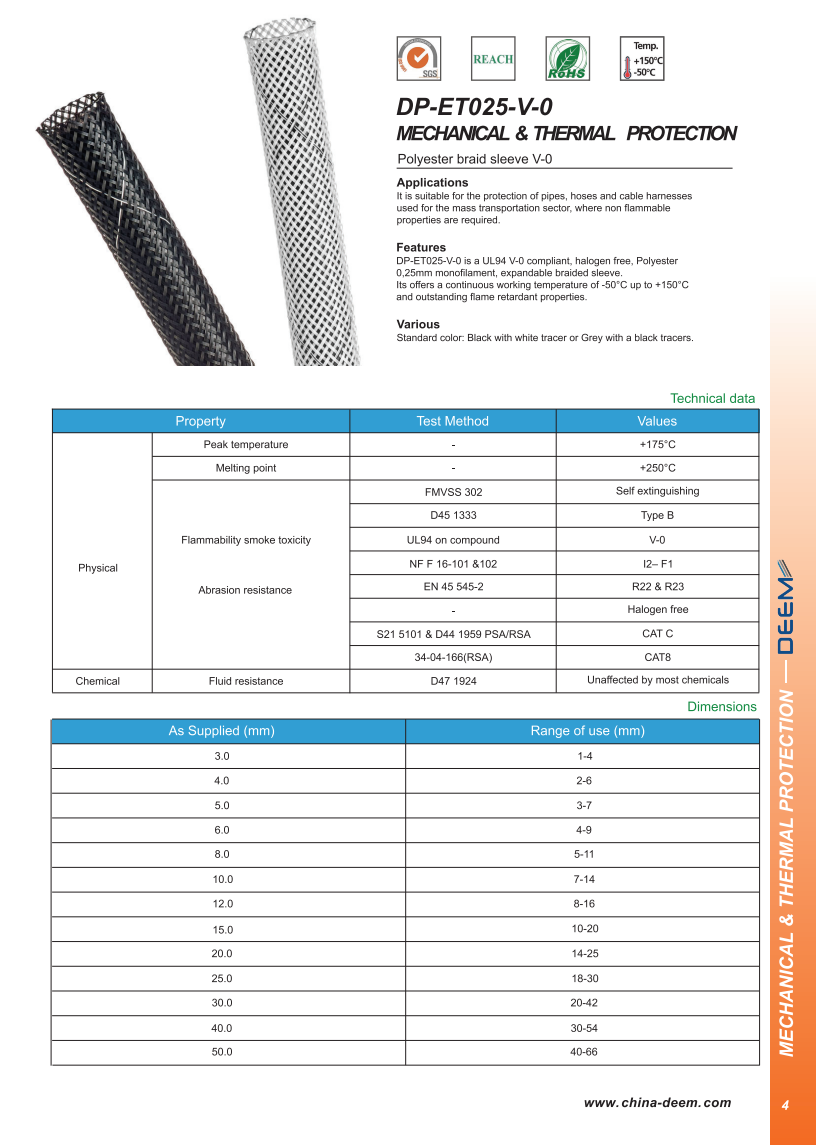

DP-ET025-V-0 is a UL94 V-0 compliant, halogen free, Polyester 0,25mm monofilament, expandable braided sleeve.
Its offers a continuous working temperature of -50°C up to +150°C and outstanding flame retardant properties.
Various
Standard color: Black with white tracer or Grey with a black tracers.

Technical Data

Property		Test Method	Values
Physical	Peak temperature		+175℃
	Melting point		+250℃
	Flammability smoke toxicity Abrasion resistance	FMVSS 302	Self extinguishing
		D451333	Type B
		UL94 on compound	V-0
		NF F 16-101&102	I2-F1
		EN 45545-2	R22&R23
			Halogen free
		S215101&D441959 PSA/RSA	CAT C
		34-04-166(RSA)	CAT8
Chemical	Fluid resistance	D471924	Unaffected by most chemicals

Dimensions

As Supplied (mm)	Range of use(mm)
3.0	1-4
4.0	2-6
5.0	3-7
6.0	4-9
8.0	5-11
10.0	7-14
12.0	8-16
15.0	10-20
20.0	14-25
25.0	18-30
30.0	20-42
40.0	30-54
