Applications
One piece design, used for shield to ground termination. High performance PE transparent sleeve provides insulation, inspection, strain relief and water proof.
Preinstalled ground lead and pre-fluxed solder perform provides a perfectly soldered, strain-relieved and environmentally protected terminal.
Features
Shrink ratio 2:1
Abrasion and chemical corrosion resistance
Transparent sleeve provides precise inspection
Operating temperature:
Operating temperature:-55°C~125°C
Minimum shrink temperature:80°C

Technical data

Item	Typical Data
Operating temperature	-55℃~125℃
Shrink temperature	>160℃
Dielectric strength	1kv
Protection type	IP67

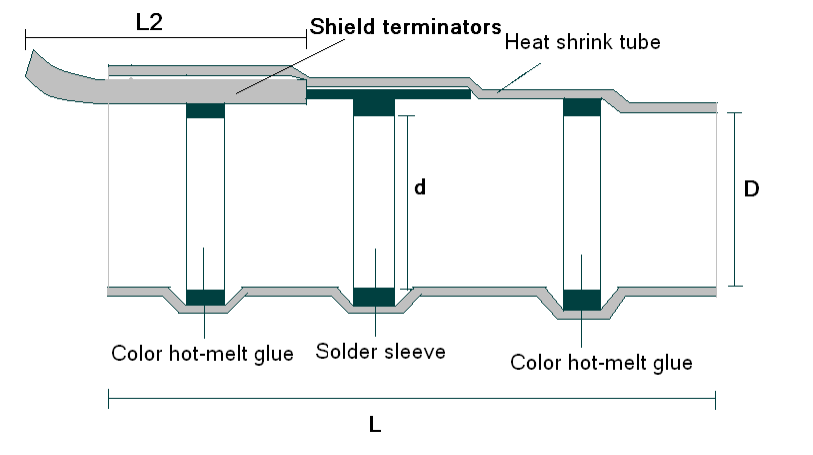

Dimensions

Part No.	Heat Shrink tube(mm)		Solder sleeve(mm)		Preinstalled wire lead( mm)
	D	L	d	H	A.W.G	mm2	L2
270	2.7±0.5	25±2.0	2.7	2.5	22	0.5	165
450	4.8±0.5	30±2.0	4.5	2.5	22	0.5	180
600	6.0±0.5	32±2.0	6.0	3.5	22	0.5	180
700	7.3±0.5	31±2.0	7.0	3.5	22	0.5	180
870	8.7±0.5	35±2.0	8.7	3.5	22	0.5	180
1070	10.7±0.5	35±2.0	10.7	3.5	22	0.5	180
1150	11.5±0.5	34±2.0	11.5	4.2	22	0.5	180
1300	13±0.5	45±2.0	13	4.5	22	0.5	180
1780	18±0.5	56±2.0	18	6.0	22	0.5	180

*Other size available on request.
