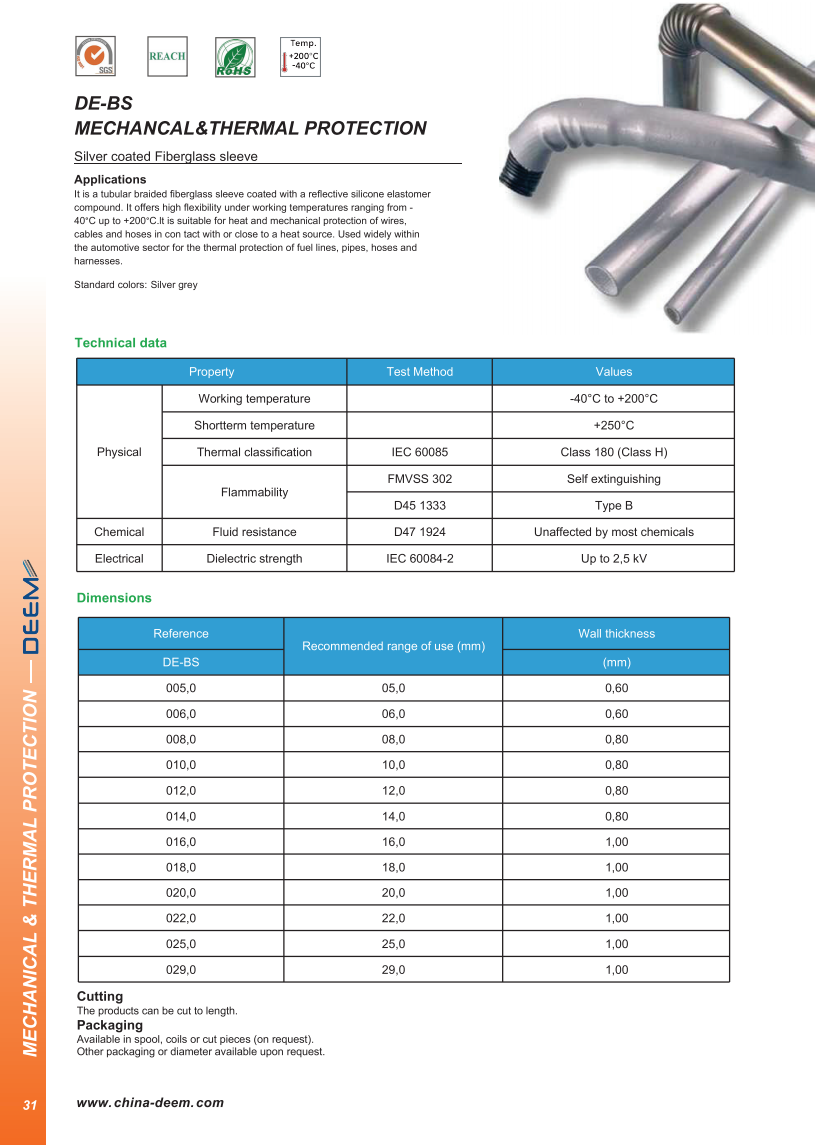

Applications
It is a tubular braided fiberglass sleeve coated with a reflective silicone elastomer compound. It offers high flexibility underworking temperatures ranging from -40°C up to +200°C.lt is suitable for heat and mechanical protection of wires, cables and hoses in con tact with or close to a heat source. Used widely within the automotive sector for the thermal protection of fuel lines, pipes, hoses and harnesses.

Standard colors: Silver grey
Technical Data

Property		Test Method	Values
Physical	Working temperature		-40℃ to+200℃
	Shortterm temperature		+250℃
	Thermal classification	IEC 60085	Class 180(Class H)
	Flammability	FMVSS 302	Self extinguishing
		D451333	Type B
Chemical	Fluid resistance	D471924	Unaffected by most chemicals
Electrical	Dielectric strength	IEC 60084-2	Up to 2,5 kV

Dimensions

Reference	Recommended range of use(mm)	Wall thickness
DE-BS		(mm)
50	50	60
60	60	60
80	80	80
100	100	80
120	120	80
140	140	80
160	160	100
180	180	100
200	200	100
220	220	100
250	250	100
290	290	100

Cutting
The products can be cut to length.
Packaging
Available in spool, coils or cut pieces (on request).
Other packaging or diameter available upon request.
