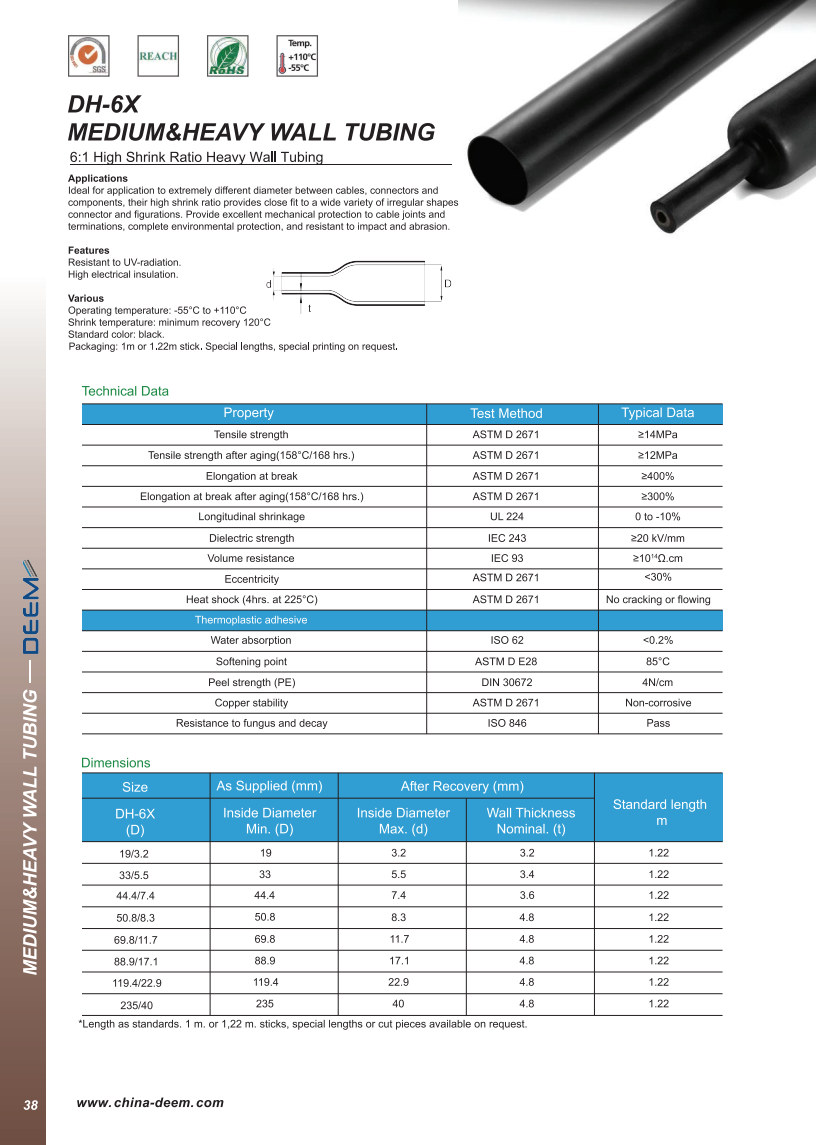

Applications
Ideal for application to extremely different diameter between cables, connectors and components, their high shrink ratio provides close fit to a wide variety of irregular shapes connector and figurations. Provide excellent mechanical protection to cable joints and terminations, complete environmental protection, and resistant to impact and abrasion.
Features
Resistant to UXAradiation.
High electrical insulation.
Various
Operating temperature: -55°C to +110°C
Shrink temperature: minimum recovery 120°C
Standard color: black.
Packaging: 1 m. or 1.22 m. stick. Special lengths, special printing on request.

Technical Data

Property	Test Method	Typical Data
Tensile strength	ASTM D 2671	≥14MPa
Tensile strength after aging(158°C/168 hrs.)	ASTM D 2671	≥12MPa
Elongation at break	ASTM D 2671	≥400%
Elongation at break after aging(158°C/168 hrs.)	ASTM D 2671	≥300%
Longitudinal shrinkage	UL 224	0 to-10%
Dielectric strength	IEC 243	≥20 kV/mm
Volume resistance	IEC 93	≥1014Ω.cm
Eccentricity	ASTM D 2671	<30%
Heat shock (4hrs. at 225°C)	ASTM D 2671	No cracking or flowing
Thermoplastic adhesive
Water absorption	ISO 62	<0.2%
Softening point	ASTM D E28	85℃
Peel strength (PE)	DIN 30672	4N/cm
Copper stability	ASTM D 2671	Non-corrosive
Resistance to fungus and decay	ISO 846	Pass

Dimensions

Size	As Supplied (mm)	After Recovery(mm)		Standard length m
DH-6X (D)	Inside Diameter Min. (D)	Inside Diameter Max. (d)	Wall Thickness Nominal. (t)
19/3.2	19	3.2	3.2	1.22
33/5.5	33	5.5	3.4	1.22
44.4/7.4	44.4	7.4	3.6	1.22
50.8/8.3	50.8	8.3	4.8	1.22
69.8/11.7	69.8	11.7	4.8	1.22
88.9/17.1	88.9	17.1	4.8	1.22
119.4/22.9	119.4	22.9	4.8	1.22
235/40	235	40	4.8	1.22

*Length as standards. 1 m. or 1,22 m. sticks, special lengths or cut pieces available on request.
