●√ Flexible,Flame Retardant,High Performance Thin Wall Tubing

 ●√ Heat Shrink Ratio: 2:1/3:1/4:1

 ●√ Wide Operation Temperature Range from -55℃ to 125℃

 ●√ Material: No PBB’s, PBBO’s, or PBBE’s. Lead content < 10 ppm.

 ●√ Approvals: UL 224 125°C VW-1 1000 V

 ●√ Premium Quality Heat Shrink Tubing: Excellent insulation performance.

       Soft and flexible wire shrink wrap, low shrinkage temperature-minimum shrinkage

       temp，fast shrinkage, easy and convenient to use with a heat gun

 ●√Standard colors: Black, red, blue, yellow, green, white. Other colors also available.

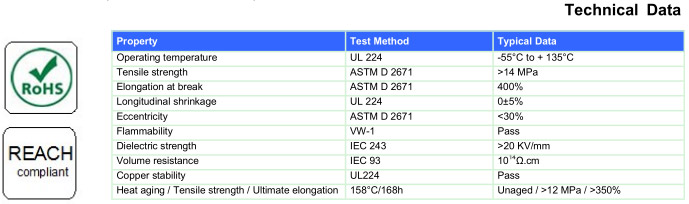

Technical Data

Property	Test Method	Typical Data
Operating temperature	UL 224	-55°C to + 125°C
Tensile strength	ASTM D 2671	>14 MPa
Elongation at break	ASTM D 2671	400%
Longitudinal shrinkage	UL 224	0±5%
Eccentricity	ASTM D 2671	<30%
Flammability	VW-1	Pass
Dielectric strength	IEC 243	>20 KV/mm
Volume resistance	IEC 93	1014 Ω.cm
Copper stability	UL224	Pass
Heat aging / Tensile strength / Ultimate elongation	158°C/168h	Unaged /  >12 MPa / > 350%

Dimensions/2X

Size	As Supplied (mm)		After Recovery (mm)		Standard length m/spool
DM-T125 Inch. (D)	Inside Diameter Min. (D)	Wall Thickness Nominal. (T)	Inside Diameter Max. (d)	Wall Thickness nominal. (t)
Special Type	0.5	0.15	0.2	0.22	200
	0.6	0.15	0.3	0.22	200
	0.8	0.15	0.4	0.22	200
3/64	1.2	0.18	0.6	0.3	200
1/16	1.6	0.18	0.8	0.33	200
3/32	2.4	0.25	1.2	0.36	200
1/8	3.2	0.25	1.6	0.44	200
3/16	4.8	0.25	2.4	0.55	200
1/4	6.4	0.25	3.2	0.55	200
3/8	9.5	0.3	4.8	0.55	100
1/2	12.7	0.35	6.4	0.65	100
5/8	16	0.35	8	0.69	100
3/4	19.1	0.4	9.5	0.89	100
1	25.4	0.45	12.7	0.9	50
1 1/4	32	0.45	16	0.9	50
1 1/2	38.1	0.5	19.1	1	50
2	50.8	0.5	25.4	1	25
3	76.2	0.55	38.1	1.2	25
4	100	0.55	50.8	1.3	25
5	120	0.55	63	1.4	25
6	150	0.55	75	1.4	25
7	180	0.55	90	1.4	25
8	210	0.55	105	1.4	25
9	230	0.55	115	1.4	25
10	250	0.55	125	1.4	25

Dimensions/3X

Size	As Supplied (mm)		After Recovery (mm)		Standard length m/spool
DM-T125 3X Inch	Inside Diameter Min. (D)	Wall Thickness Nominal. (T)	Inside Diameter Max. (d)	Wall Thickness Nominal. (t)
1/16	1.5/0.5	0.15	0.5	0.45	200
1/8	3/1	0.18	1	0.55	200
3/16	4.5/1.5	0.2	1.5	0.6	100
1/4	6/2	0.22	2	0.65	100
3/8	9/3	0.3	3	0.75	50
1/2	12/4	0.35	4	0.8	50
5/8	15/5	0.35	5	0.85	50
3/4	18/6	0.4	6	0.89	50
1	24/8	0.45	8	1	25
1 1/4	30/10	0.45	10	1.15	25
1 1/2	39/13	0.5	13	1.25	25
2	50/16	0.75	16	2.3	1
2 1/2	60/20	0.8	20	2.4	1
3	70/23	0.85	23	2.4	1
4	100/33	0.85	33	2.4	1

Dimensions/4X

Size	As Supplied (mm)	After Recovery (mm)		Standard length m
DM-T125 / 4X Inch. (D)	Inside Diameter Min. (D)	Inside Diameter Max. (d)	Wall Thickness Nominal. (t)
3/16	4/1	1	0.7	1 or 1.22
1/4	6/1.5	1.5	0.78	1 or 1.22
3/8	8/2	2	0.8	1 or 1.22
1/2	12/3	3	0.9	1 or 1.22
5/8	16/4	4	1	1 or 1.22
3/4	20/5	5	1.5	1 or 1.22
1	25/6.5	6.5	1.6	1 or 1.22
1 1/4	32/8	8	1.7	1 or 1.22
1 1/2	40/10	10	1.7	1 or 1.22
2	51/14	14	1.7	1 or 1.22
3	70/23	6	1.7	1 or 1.22
4	102/26.7	26.7	1.7	1 or 1.22
4 1/2	115/36.8	36.8	1.7	1 or 1.22
