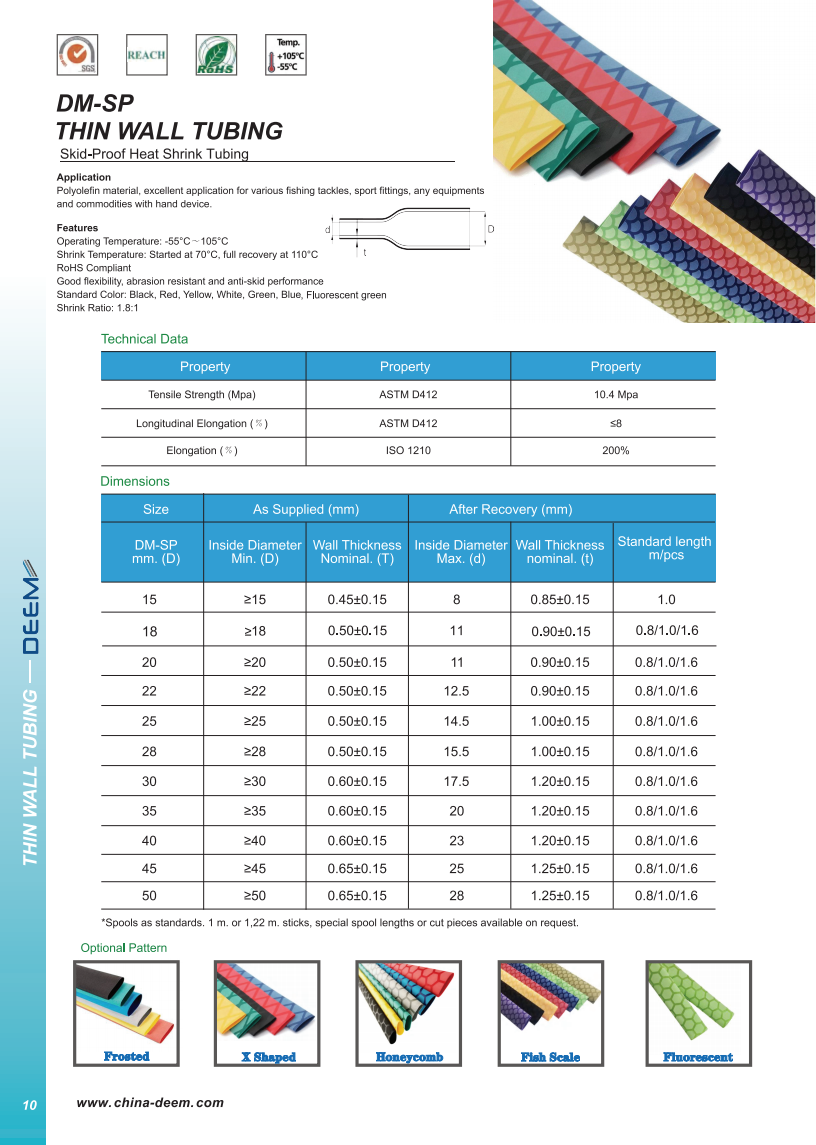

Anti slip camouflage heat shrink tubing
- BrandDEEM
- TypeDM-SP
Application
Polyolefin material, excellent application for various fishing tackles, sport fittings, any equipments
and commodities with hand device.
Features
Operating Temperature: -55°C^105°C
Shrink Temperature: Started at 70°C, full recovery at 110°C
RoHS Compliant
Good flexibility, abrasion resistant and anti-skid performance
Standard Color: Black, Red, Yellow, White, Green, Blue
Shrink Ratio: 1.8:1
Technical Data
|
Property |
Property |
Property |
|
Tensile Strength (Mpa) |
ASTM D412 |
10.4 Mpa |
|
Longitudinal Elongation(%) |
ASTM D412 |
≤8 |
|
Elongation(%) |
ISO 1210 |
200% |
|
Size |
As Supplied (mm) |
After Recovery (mm) |
Standard length |
||
|
DM-SP |
Inside Diameter |
Wall Thickness |
Inside Diameter |
Wall Thickness |
|
|
15 |
≥15 |
0.45±0.15 |
8 |
0.85±0.15 |
1.0 |
|
20 |
≥20 |
0.50±0.15 |
11 |
0.90±0.15 |
0.8/1.0/1.6 |
|
22 |
≥22 |
0.50±0.15 |
12.5 |
0.90±0.15 |
0.8/1.0/1.6 |
|
25 |
≥25 |
0.50±0.15 |
14.5 |
1.00±0.15 |
0.8/1.0/1.6 |
|
28 |
≥28 |
0.50±0.15 |
15.5 |
1.00±0.15 |
0.8/1.0/1.6 |
|
30 |
≥30 |
0.60±0.15 |
17.5 |
1.20±0.15 |
0.8/1.0/1.6 |
|
35 |
≥35 |
0.60±0.15 |
20 |
1.20±0.15 |
0.8/1.0/1.6 |
|
40 |
≥40 |
0.60±0.15 |
23 |
1.20±0.15 |
0.8/1.0/1.6 |
|
45 |
≥45 |
0.65±0.15 |
25 |
1.25±0.15 |
0.8/1.0/1.6 |
|
50 |
≥50 |
0.65±0.15 |
28 |
1.25±0.15 |
0.8/1.0/1.6 |
