Flexible, General Purpose Flame Retardant Heat Shrink Tubing
- BrandDEEM
- TypeDM-T125
https://v.youku.com/v_show/id_XNDk2NTk3NzcwOA==.html
●√ Flexible,Flame Retardant,High Performance Thin Wall Tubing
●√ Heat Shrink Ratio: 2:1/3:1/4:1
●√ Wide Operation Temperature Range from -55℃ to 125℃
●√ Material: No PBB’s, PBBO’s, or PBBE’s. Lead content < 10 ppm.
●√ Approvals: UL 224 125°C VW-1 1000 V
●√ Premium Quality Heat Shrink Tubing: Excellent insulation performance.

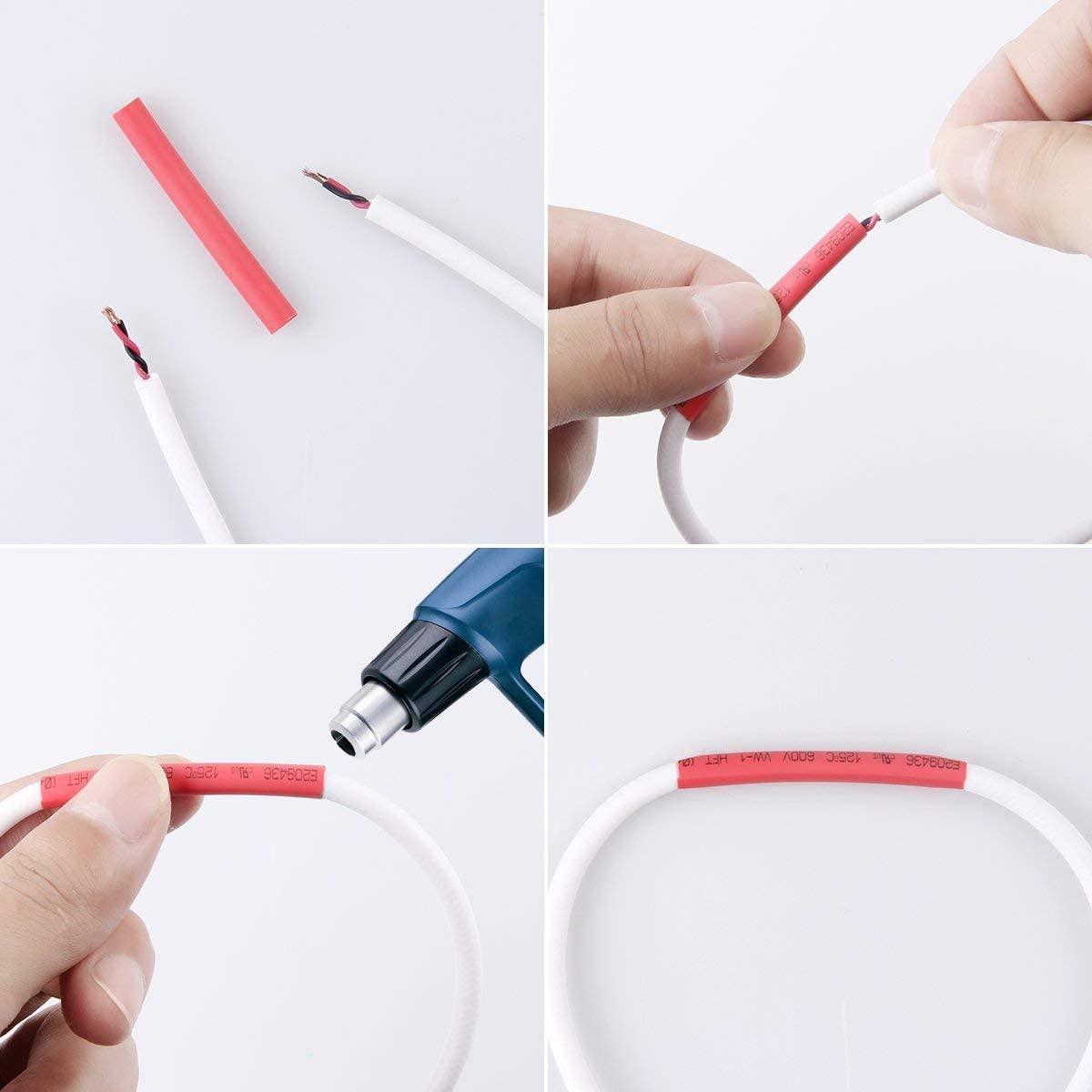

Soft and flexible wire shrink wrap, low shrinkage temperature-minimum shrinkage
temp，fast shrinkage, easy and convenient to use with a heat gun

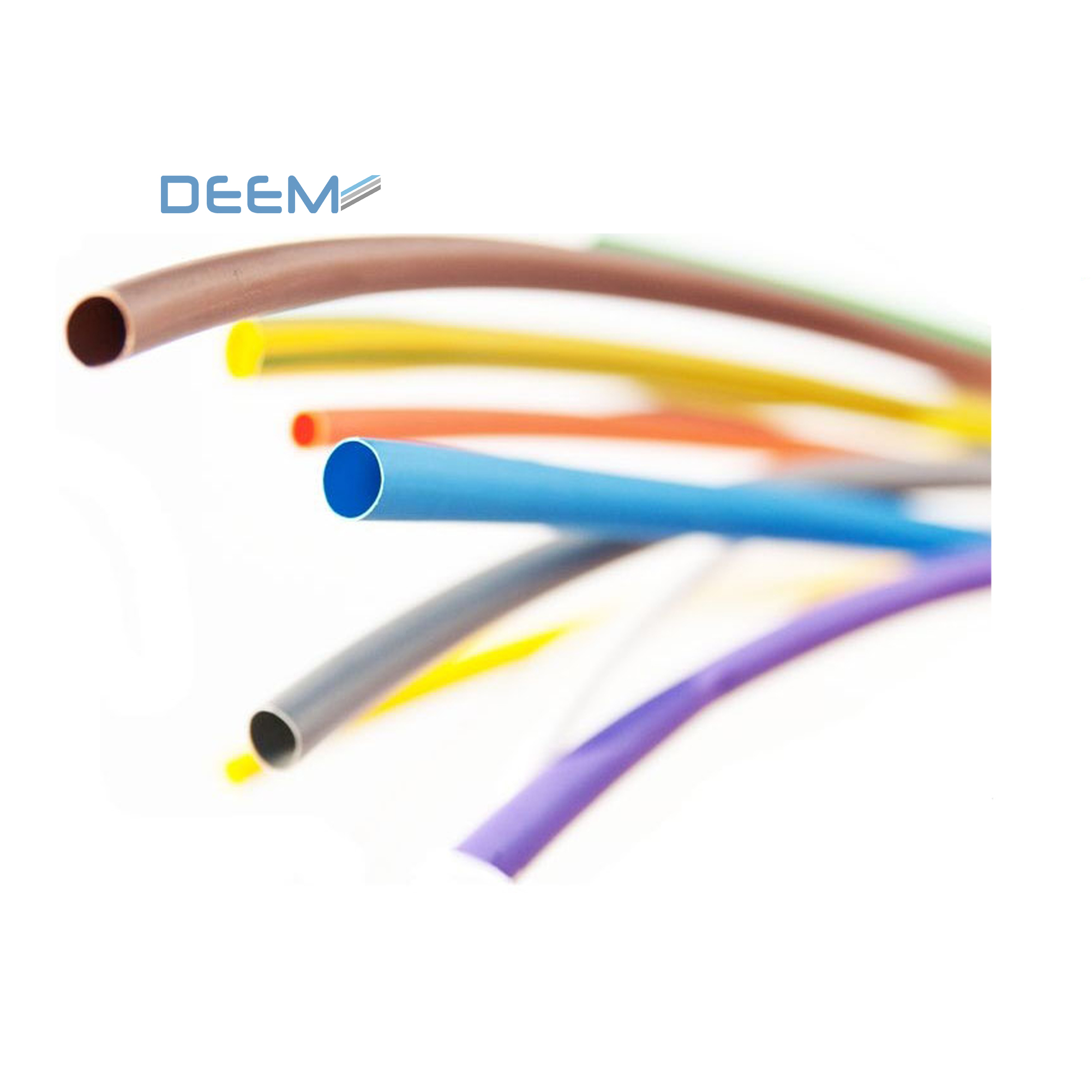

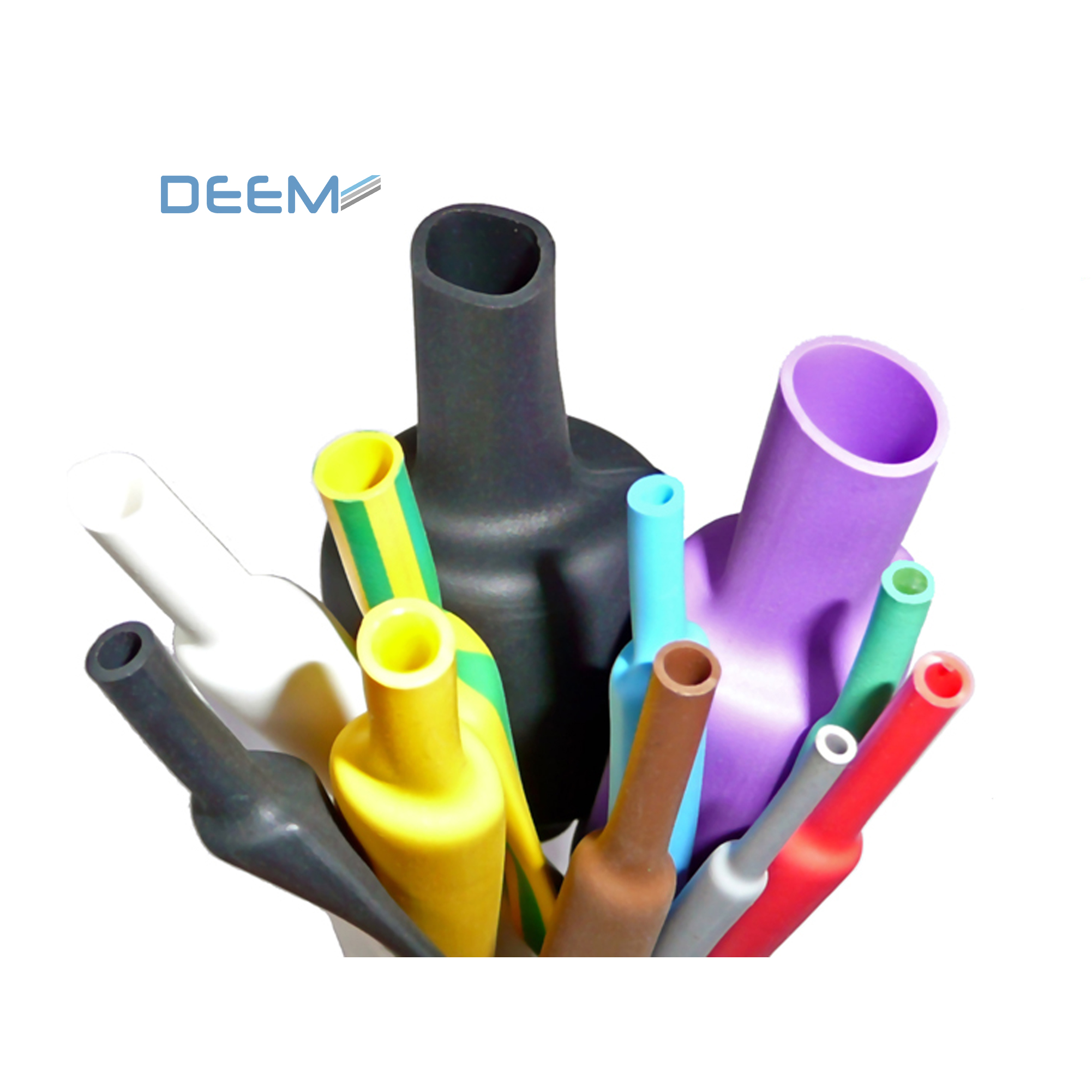

●√Standard colors: Black, red, blue, yellow, green, white. Other colors also available.
Technical Data
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
UL 224 |
-55°C to + 125°C |
|
Tensile strength |
ASTM D 2671 |
>14 MPa |
|
Elongation at break |
ASTM D 2671 |
400% |
|
Longitudinal shrinkage |
UL 224 |
0±5% |
|
Eccentricity |
ASTM D 2671 |
<30% |
|
Flammability |
VW-1 |
Pass |
|
Dielectric strength |
IEC 243 |
>20 KV/mm |
|
Volume resistance |
IEC 93 |
1014 Ω.cm |
|
Copper stability |
UL224 |
Pass |
|
Heat aging / Tensile strength / Ultimate elongation |
158°C/168h |
Unaged / >12 MPa / > 350% |
Dimensions/2X
|
Size |
As Supplied (mm) |
After Recovery (mm) |
Standard
length
m/spool
|
||
|
DM-T125
Inch. (D)
|
Inside Diameter
Min. (D)
|
Wall Thickness
Nominal. (T)
|
Inside Diameter
Max. (d)
|
Wall Thickness
nominal. (t)
|
|
|
Special Type |
0.5 | 0.15 | 0.2 | 0.22 | 200 |
| 0.6 | 0.15 | 0.3 | 0.22 | 200 | |
| 0.8 | 0.15 | 0.4 | 0.22 | 200 | |
| 3/64 | 1.2 | 0.18 | 0.6 | 0.3 | 200 |
| 1/16 | 1.6 | 0.18 | 0.8 | 0.33 | 200 |
| 3/32 | 2.4 | 0.25 | 1.2 | 0.36 | 200 |
| 1/8 | 3.2 | 0.25 | 1.6 | 0.44 | 200 |
| 3/16 | 4.8 | 0.25 | 2.4 | 0.55 | 200 |
| 1/4 | 6.4 | 0.25 | 3.2 | 0.55 | 200 |
| 3/8 | 9.5 | 0.3 | 4.8 | 0.55 | 100 |
| 1/2 | 12.7 | 0.35 | 6.4 | 0.65 | 100 |
| 5/8 | 16 | 0.35 | 8 | 0.69 | 100 |
| 3/4 | 19.1 | 0.4 | 9.5 | 0.89 | 100 |
| 1 | 25.4 | 0.45 | 12.7 | 0.9 | 50 |
| 1 1/4 | 32 | 0.45 | 16 | 0.9 | 50 |
| 1 1/2 | 38.1 | 0.5 | 19.1 | 1 | 50 |
| 2 | 50.8 | 0.5 | 25.4 | 1 | 25 |
| 3 | 76.2 | 0.55 | 38.1 | 1.2 | 25 |
| 4 | 100 | 0.55 | 50.8 | 1.3 | 25 |
| 5 | 120 | 0.55 | 63 | 1.4 | 25 |
| 6 | 150 | 0.55 | 75 | 1.4 | 25 |
| 7 | 180 | 0.55 | 90 | 1.4 | 25 |
| 8 | 210 | 0.55 | 105 | 1.4 | 25 |
| 9 | 230 | 0.55 | 115 | 1.4 | 25 |
| 10 | 250 | 0.55 | 125 | 1.4 | 25 |
Dimensions/3X
|
Size |
As Supplied (mm) |
After Recovery (mm) |
Standard length
m/spool
|
||
|
DM-T125
3X Inch
|
Inside Diameter
Min. (D)
|
Wall Thickness
Nominal. (T)
|
Inside Diameter
Max. (d)
|
Wall Thickness
Nominal. (t)
|
|
| 1/16 | 1.5/0.5 | 0.15 | 0.5 | 0.45 | 200 |
| 1/8 | 3/1 | 0.18 | 1 | 0.55 | 200 |
| 3/16 | 4.5/1.5 | 0.2 | 1.5 | 0.6 | 100 |
| 1/4 | 6/2 | 0.22 | 2 | 0.65 | 100 |
| 3/8 | 9/3 | 0.3 | 3 | 0.75 | 50 |
| 1/2 | 12/4 | 0.35 | 4 | 0.8 | 50 |
| 5/8 | 15/5 | 0.35 | 5 | 0.85 | 50 |
| 3/4 | 18/6 | 0.4 | 6 | 0.89 | 50 |
| 1 | 24/8 | 0.45 | 8 | 1 | 25 |
| 1 1/4 | 30/10 | 0.45 | 10 | 1.15 | 25 |
| 1 1/2 | 39/13 | 0.5 | 13 | 1.25 | 25 |
| 2 | 50/16 | 0.75 | 16 | 2.3 | 1 |
| 2 1/2 | 60/20 | 0.8 | 20 | 2.4 | 1 |
| 3 | 70/23 | 0.85 | 23 | 2.4 | 1 |
| 4 | 100/33 | 0.85 | 33 | 2.4 | 1 |
Dimensions/4X
|
Size |
As Supplied (mm) |
After Recovery (mm) |
Standard length
m
|
|
|
DM-T125 / 4X Inch.
(D)
|
Inside Diameter
Min. (D)
|
Inside Diameter
Max. (d)
|
Wall Thickness
Nominal. (t)
|
|
| 3/16 | 4/1 | 1 | 0.7 |
1 or 1.22 |
| 1/4 | 6/1.5 | 1.5 | 0.78 |
1 or 1.22 |
| 3/8 | 8/2 | 2 | 0.8 |
1 or 1.22 |
| 1/2 | 12/3 | 3 | 0.9 |
1 or 1.22 |
| 5/8 | 16/4 | 4 | 1 |
1 or 1.22 |
| 3/4 | 20/5 | 5 | 1.5 |
1 or 1.22 |
| 1 | 25/6.5 | 6.5 | 1.6 |
1 or 1.22 |
| 1 1/4 | 32/8 | 8 | 1.7 |
1 or 1.22 |
| 1 1/2 | 40/10 | 10 | 1.7 |
1 or 1.22 |
| 2 | 51/14 | 14 | 1.7 |
1 or 1.22 |
| 3 | 70/23 | 6 | 1.7 |
1 or 1.22 |
| 4 | 102/26.7 | 26.7 | 1.7 |
1 or 1.22 |
| 4 1/2 | 115/36.8 | 36.8 | 1.7 |
1 or 1.22 |
