Introduction
●√ApplicationsSuitable for high end, critical applications, typically: military,
aerospace, medical and optical sectors.
●√Features:

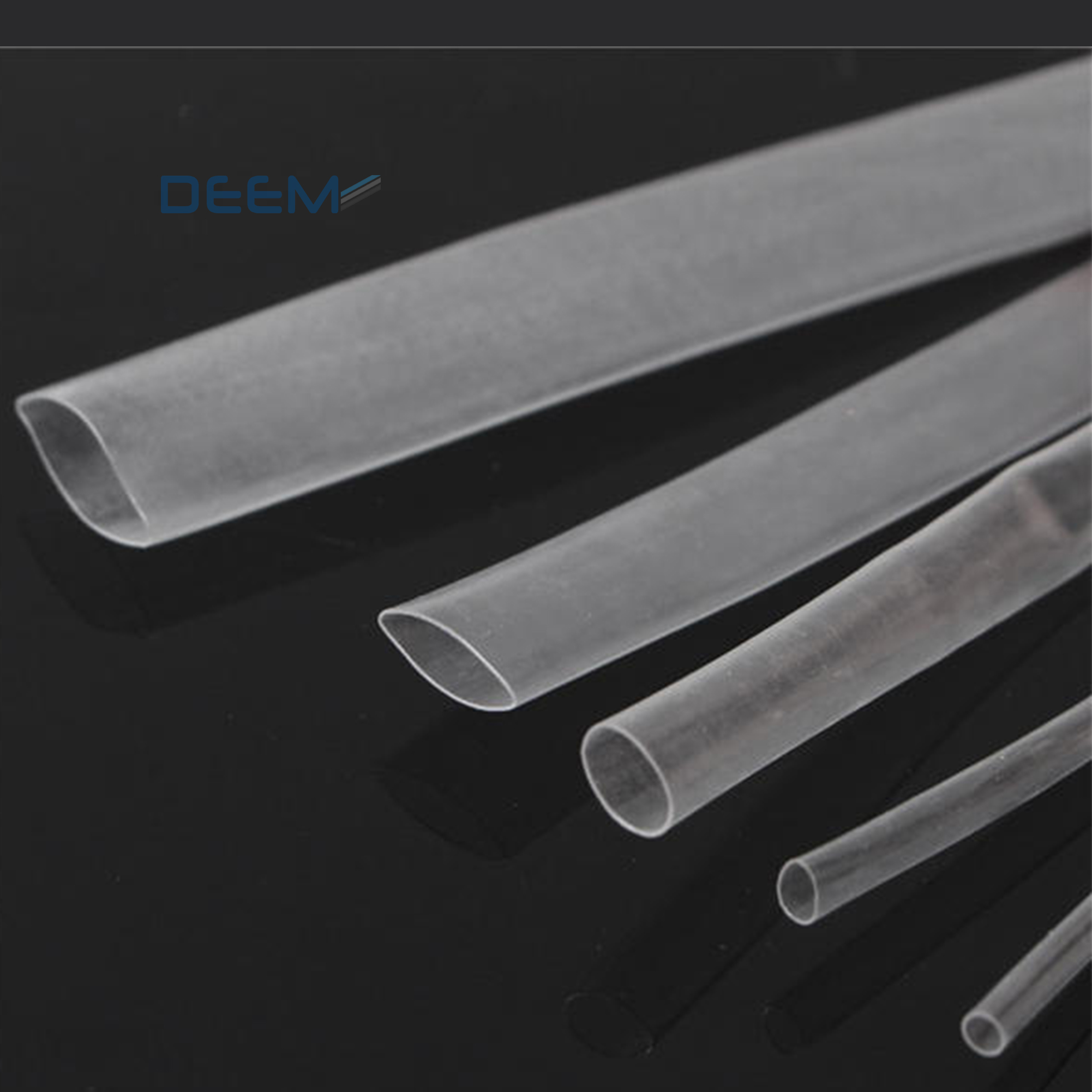

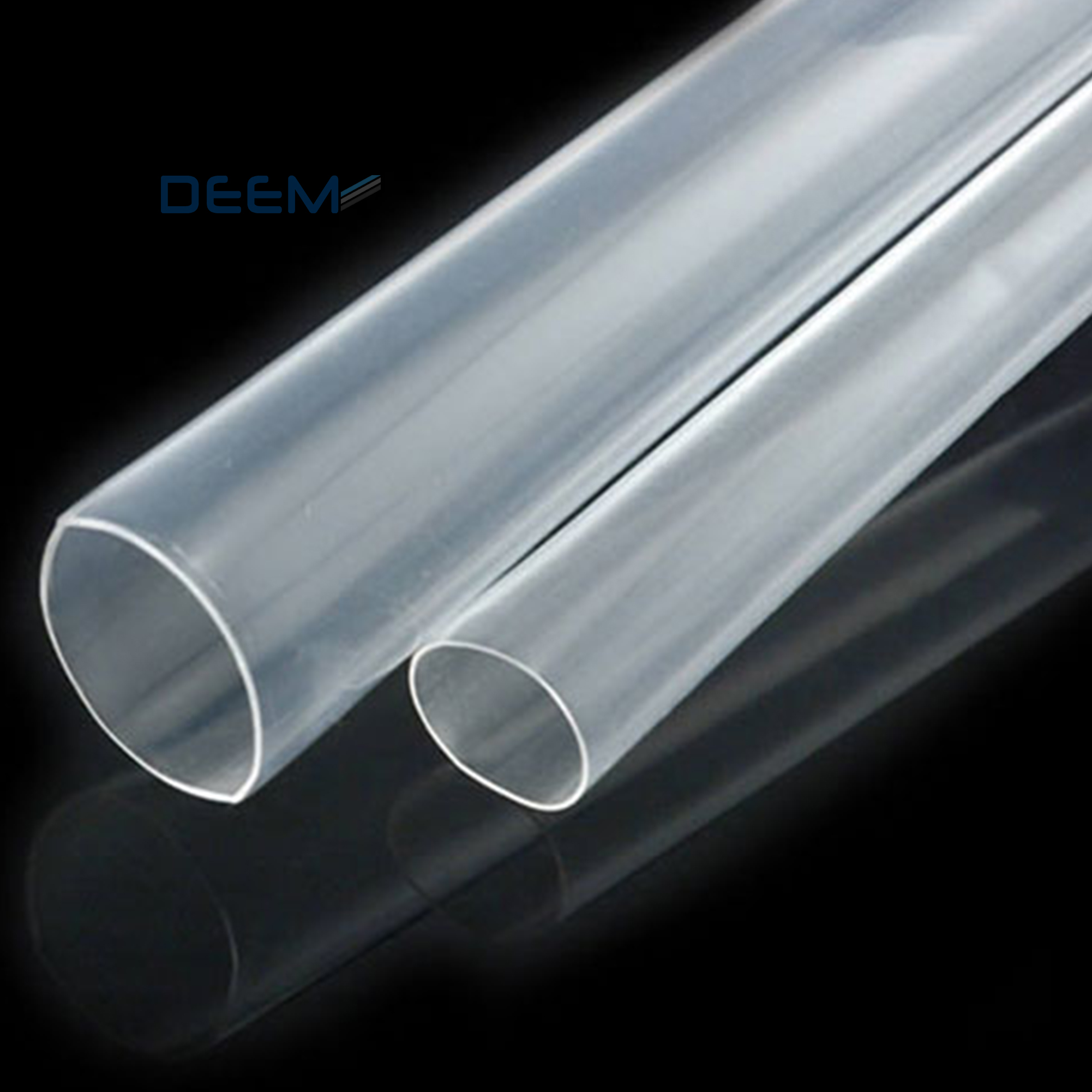

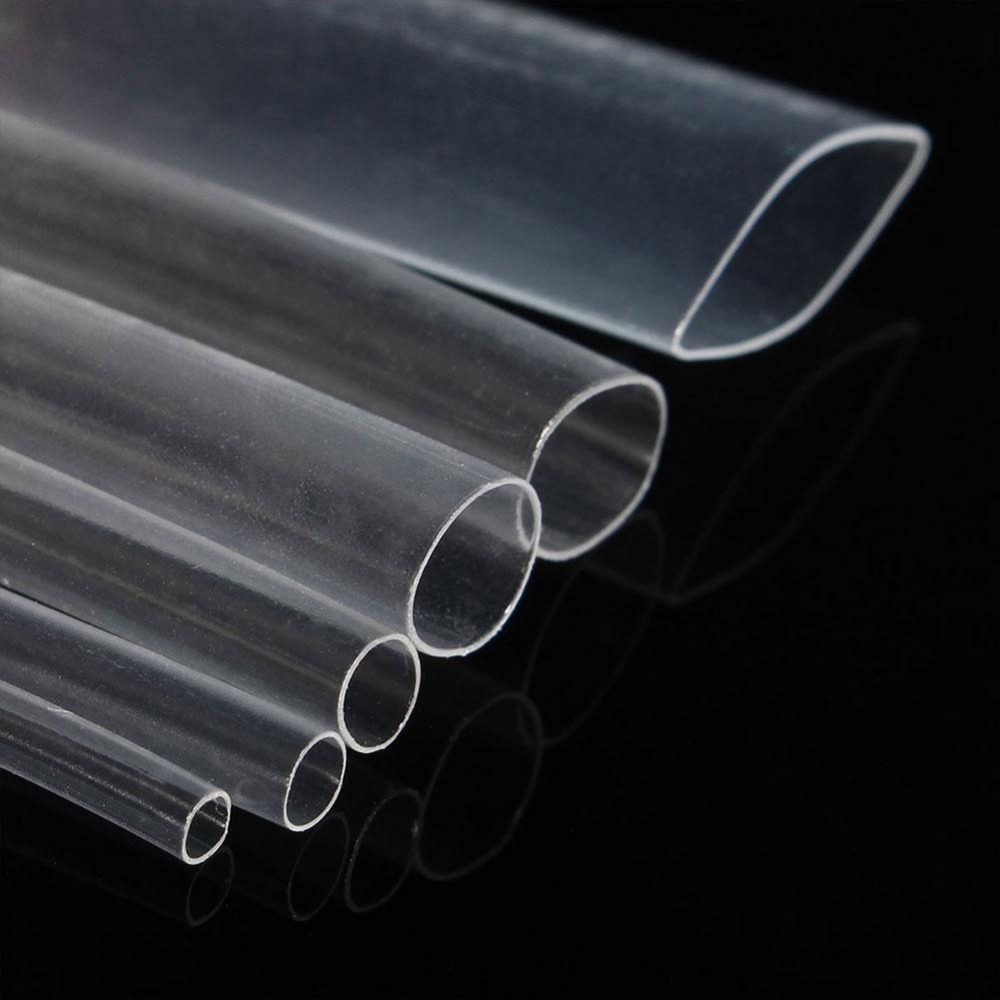

High performance, highly flame retardant, modified fluorinated
ethylene propylene (FEP) heat shrink tubing. Excellent
resistance to chemicals and a low friction coefficient.
●√Various
Standard color: Natural. Other colors available on request.
Shrink Ratio: 1.3:1
Technical Data
Property | Test Method | Typical Data | |
Physical Chemical | Operating temperature | UL 224 | -200°C to + 205°C |
Longitudinal change | ASTM D2671 | ±30% | |
Tensile strength | ASTM D683 | >18 MPa | |
Elongation at break | ASTM D683 | ≥245% | |
Flammability | UL94 V0 | Pass | |
Electrical | Dielectric strength | ASTM D149 | ≥19.7KV/mm |
Volume resistivity | ASTM D257 | ≥300% | |
Chemical | Resistivity | Inert |
Dimensions/1.3 :1
Size As Supplied (mm) | Size After Recovery (mm) |
Standard length m/spool |
|||
Inside Diameter Max. (d) |
Wall Thickness, (t) | ||||
Min | Mor | Max | |||
3 | 2.3 | 0.15 | 0.2 | 0.25 | 1.2 |
4 | 3.1 | 0.15 | 0.2 | 0.25 | 1.2 |
5 | 3.8 | 0.15 | 0.2 | 0.25 | 1.2 |
6 | 4.6 | 0.15 | 0.2 | 0.25 | 1.2 |
7 | 5.4 | 0.18 | 0.23 | 0.28 | 1.2 |
8 | 6.2 | 0.18 | 0.23 | 0.28 | 1.2 |
10 | 7.7 | 0.18 | 0.23 | 0.28 | 1.2 |
12 | 9.2 | 0.18 | 0.25 | 0.33 | 1.2 |
16 | 12.3 | 0.18 | 0.25 | 0.33 | 1.2 |
18 | 13.8 | 0.18 | 0.25 | 0.33 | 1.2 |
20 | 15.4 | 0.18 | 0.28 | 0.38 | 1.2 |
25 | 19.2 | 0.18 | 0.28 | 0.38 | 1.2 |
30 | 23.1 | 0.18 | 0.28 | 0.38 | 1.2 |
35 | 26.9 | 0.18 | 0.28 | 0.38 | 1.2 |
40 | 30.1 | 0.18 | 0.28 | 0.38 | 1.2 |
45 | 34.6 | 0.2 | 0.3 | 0.41 | 1.2 |
50 | 38.5 | 0.2 | 0.3 | 0.41 | 1.2 |
55 | 42.3 | 0.2 | 0.3 | 0.41 | 1.2 |
60 | 46.2 | 0.28 | 0.38 | 0.48 | 1.2 |
65 | 50 | 0.41 | 0.51 | 0.61 | 1.2 |
70 | 53.8 | 0.41 | 0.51 | 0.61 | 1.2 |
80 | 61.5 | 0.53 | 0.64 | 0.74 | 1.2 |
90 | 69.2 | 0.66 | 0.76 | 0.86 | 1.2 |
100 | 76.9 | 0.79 | 0.89 | 0.99 | 1.2 |
110 | 84.6 | 0.79 | 0.89 | 0.99 | 1.2 |
120 | 92.3 | 0.79 | 0.89 | 0.99 | 1.2 |
130 | 100 | 0.79 | 0.89 | 0.99 | 1.2 |
140 | 107.7 | 0.79 | 0.89 | 0.99 | 1.2 |
150 | 115.4 | 0.79 | 0.89 | 0.99 |
1.2
|
